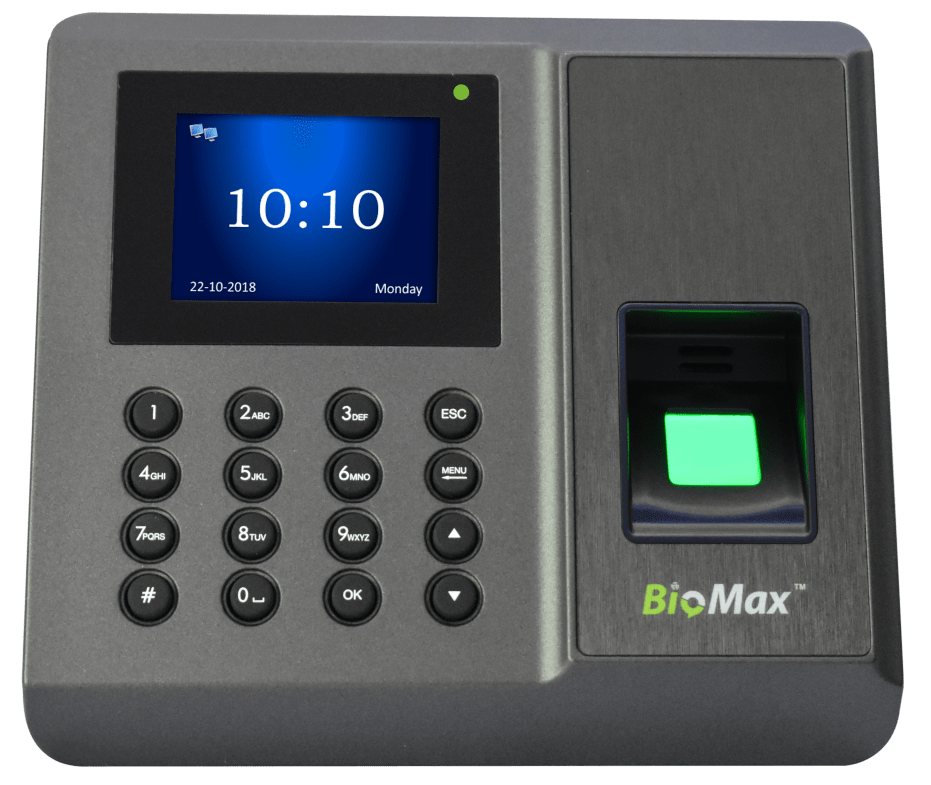

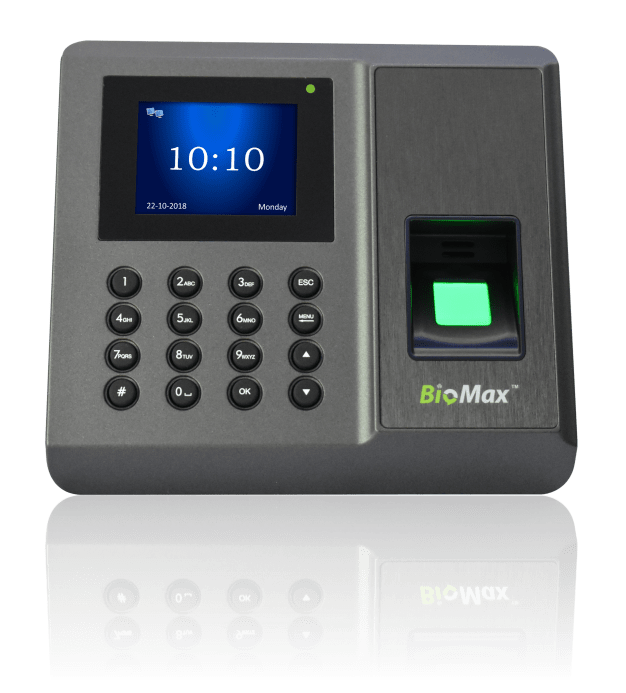

N-X90W


Product Highlights :-

Fingerprint Capacity
10,000
Max. user
10,000
Log Capacity
1,50,000
Password capacity
10,000
Card capacity
10,000

Technical Specification

Fingerprint Time & Attendance System

Storage capacity

Fingerprint Capacity

10,000

Max. User

10,000

Log Capacity

1,50,000


Password Capacity

10,000


Card capacity

10,000


CPU

1GHz

Biometric

FAR

0.00001%


FRR

0.001%


Sensor type

500 DPI


Identification Mode

Fingerprint, Card, PIN

GPRS

Yes (Optional)


RF card options

125kHz EM (Standard) / 13.56MHz Mifare (Optional)

Audio/Visual

LCD

2.4" TFT color screen 320x240 pixel


Voice instruction

16-bit Hi-Fi voice & sound indication


Language

English

Communication

Communication

WIFI, TCP/IP, RS232/485, USB host


Push data

Yes

Power & environment

Built-in backup Battery

Yes


Power

12V DC / 2A


Operating Temperature

0°c - 45°c

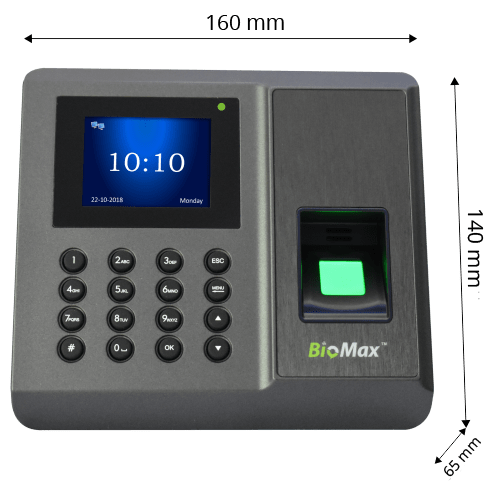

Dimension

160 x 150 x 65 mm

Access control

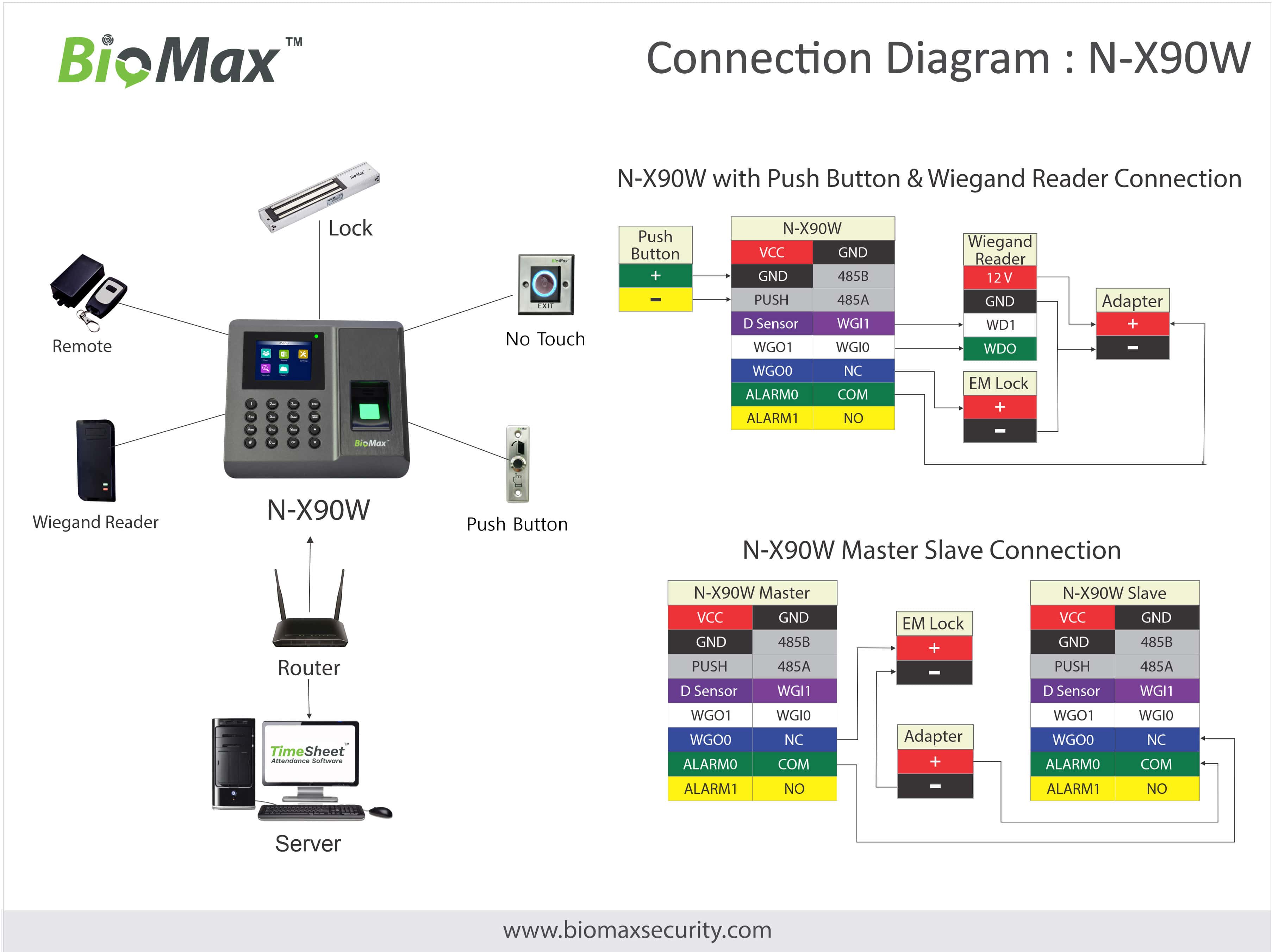

Wiegand input/output

Yes


Relay

Yes

Software

Attendance Software

Yes

Features

World-class algorithm


High-Speed and Accurate Fingerprint Identification


Fingerprint, Pin, Card authentication


Self-Service Inquiry



N-X90W N-X90W
