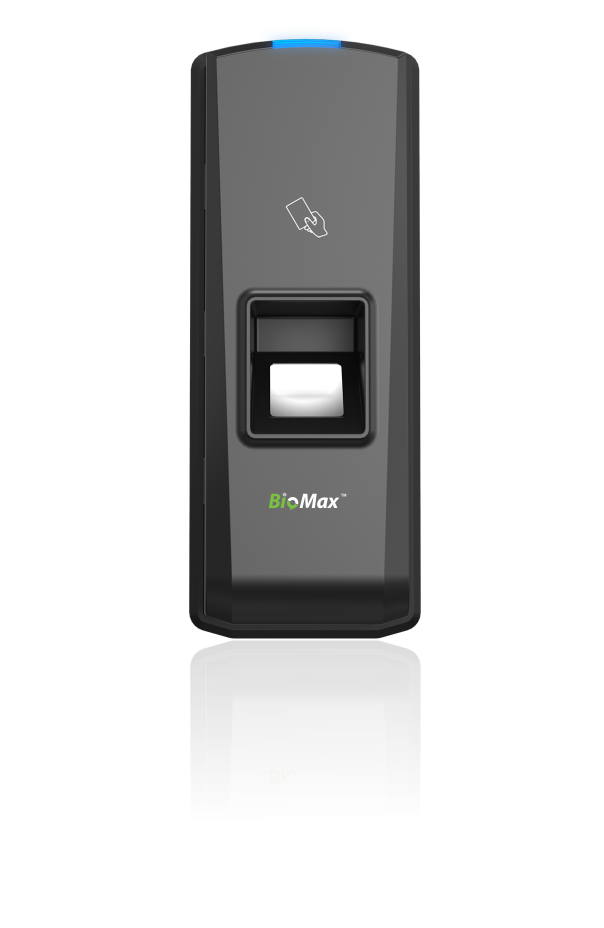

BioMax Biometric V-R12

V-R12SNAZZY & Fast

Snazzy Quick Response Reader

VR 12 takes you through the divine future of readers and launching trends that ripple through the industry with long lasting—effects. Gain a competitive advantage with our solution to the readers that allow the cutting-edge features your customers need.

Advance Finger

RFID Card Detection

Access Control

LAN Connectivity

POE(Power over Ethernet)

Feather Touch Keypad

Fingerprint Card Reader

Functions

RFID Card : Standard EM, Optional Mifare

Sensor Wake Up Mode : Touch

CPU : 32-Bit High Speed CPU

Sensor : Advance Fingerprint Sensor

Communication : Rs485

Scan Area : 22m*18mm

Resolution : 500 DPI

Identification Mode : FP, Card

Power & Environment

Temperature : -20°C ~ 50°C

Power : DC 12V, 1Amp

Dimension : 160 x 150 x 65 mm

VR-12 has a great deal of focus on maximizing speed bandwidth that allows quick verification. Dual Combination of Card Reader as well as touch active Fingerprint sensor, with its smaller size and larger output, VR 12 is the one carrying such technical significance.

Manual

Catalogue

Device Introduction

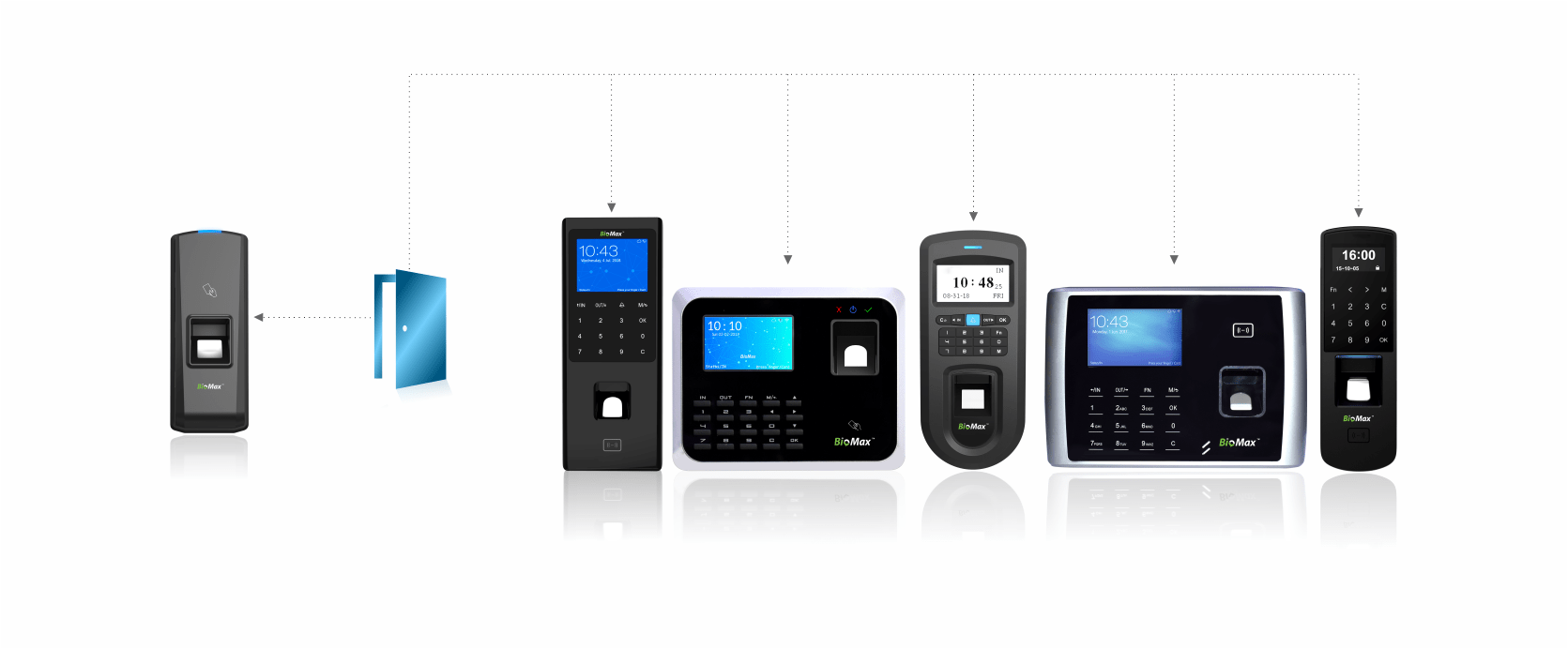

Connection Diagram

FAQ's

How to add new user in device?

Menu >> User >> New >> Select Finger/Password/Card >> Add User ID >> Add User Name >> Add >> Finger/Password/Card.
How to Modify existing user ?

Menu >> User >> Modify >> Select Particular user for modify.
