V-AX14


Product Highlights :-

Fingerprint Capacity
3000
Card Capacity
3000
Log Capacity
1,00,000
Communication
TCP/IP, WiFi, RS232/485, USB Host & Client
Push DataYes

Technical Specification

 Fingerprint Time & Attendance  with Access Control System

Storage capacity

Fingerprints Capacity

3000


Card Capacity

3000


Log Capacity

1,00,000

Biometric

FAR

0.00001%


FRR

0.001%

Operating Voltage

DC12V, 2A

Audio/Visual

LCD

3" Widescreen High Definition TFT Display


Scan Area

22mm*18mm

Communication

Communication

TCP/IP, WiFi, RS232/485, USB Host & Client


Push Data

Yes


Voice Prompt

Support Multiple Languages Display and Voice Prompt

Power & environment

Temperature

-20℃ ~ 65℃


Humidity

20% ~ 80% RH


Daylight Saving

Manual Mode, Automatic Mode

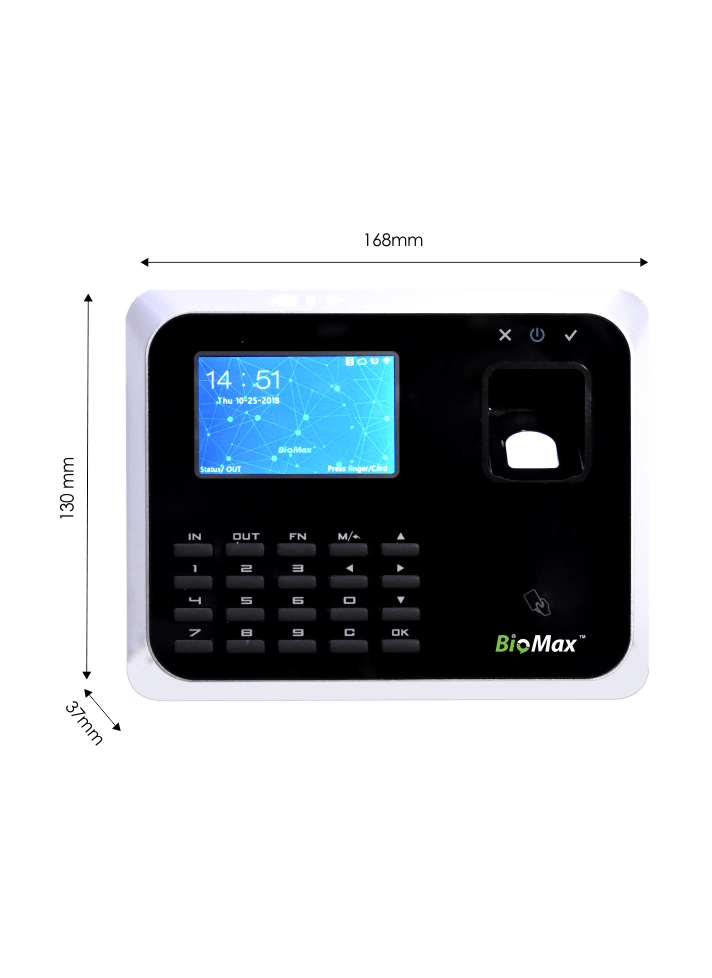

Dimension

168mm (W) * 130mm (H) * 37mm (D)

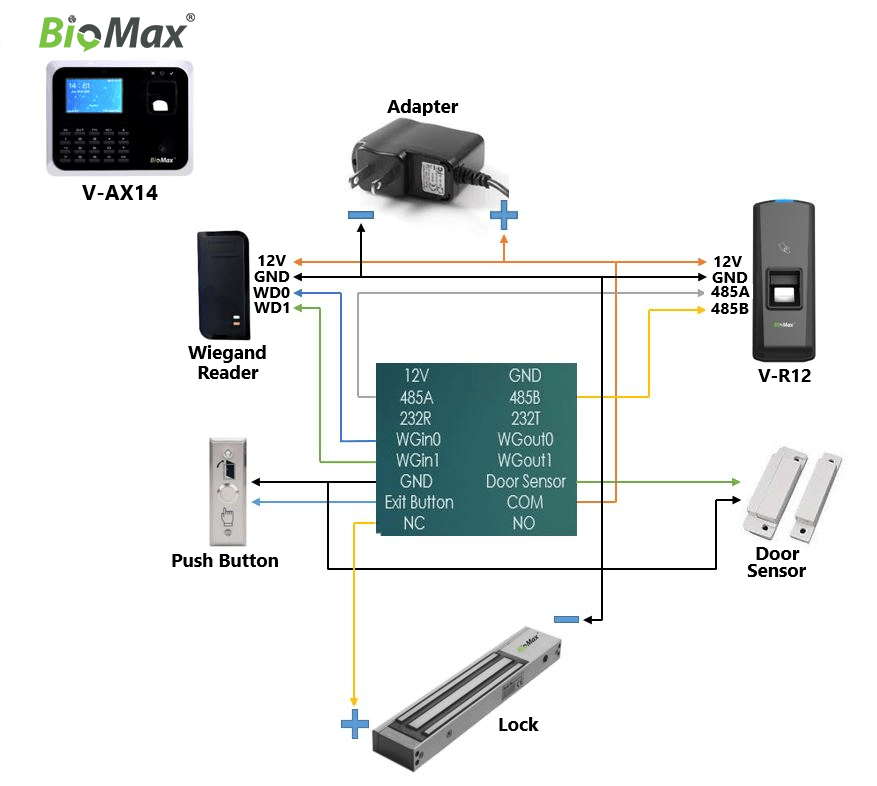

Access control

Weigand In & Out

Yes


Relay

1 Relay


Optional

Mifare Card


Access Groups & Time Schedules

16 Groups, 32 Time Zones


Short Message

Supports Up to 50 Public or Private Message Simultaneously Displayed


Workcode

6-digit Work Code


Self-defined Status

16


Door Sensor

Yes

Software

Attendance Software

Desktop, Web, Cloud



V-AX14 V-AX14
