V-AX18



Product Highlights :-

Fingerprint Capacity
3000
Card Capacity
3000
Log Capacity
1,00,000
CPU
Industrial High Speed CPU
Communication
TCP/IP, Rs485, USB Host & Client
Push DataYes

Technical Specification

Yes

 Fingerprint Time & Attendance  with Access Control System

Storage capacity

Fingerprints Capacity

3000


Card Capacity

3000


Log Capacity

1,00,000


CPU

Industrial High Speed CPU

Biometric

Fingerprint sensor

500 DPI Optical sensor(Touch Active Sensor)


Memory

512MB


FAR

0.00001%


FRR

0.001%


Power

DC 12V, 2 Amp

Audio/Visual

LCD

2.8” Color Screen

Keypad

Feather Touch Keypad


Fingerprint Image Display

Yes

Communication

Communication

TCP/IP, Rs485, USB Host & Client


Push Data

Yes

Power & environment

Operating Temperature

-25°C to 60°C


SSR

Yes

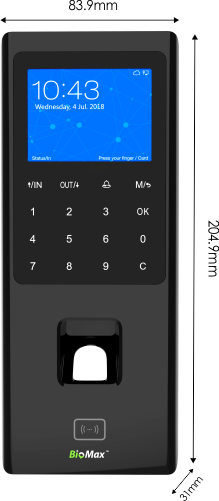

Dimension

83.9 x 204.9 x 31 mm

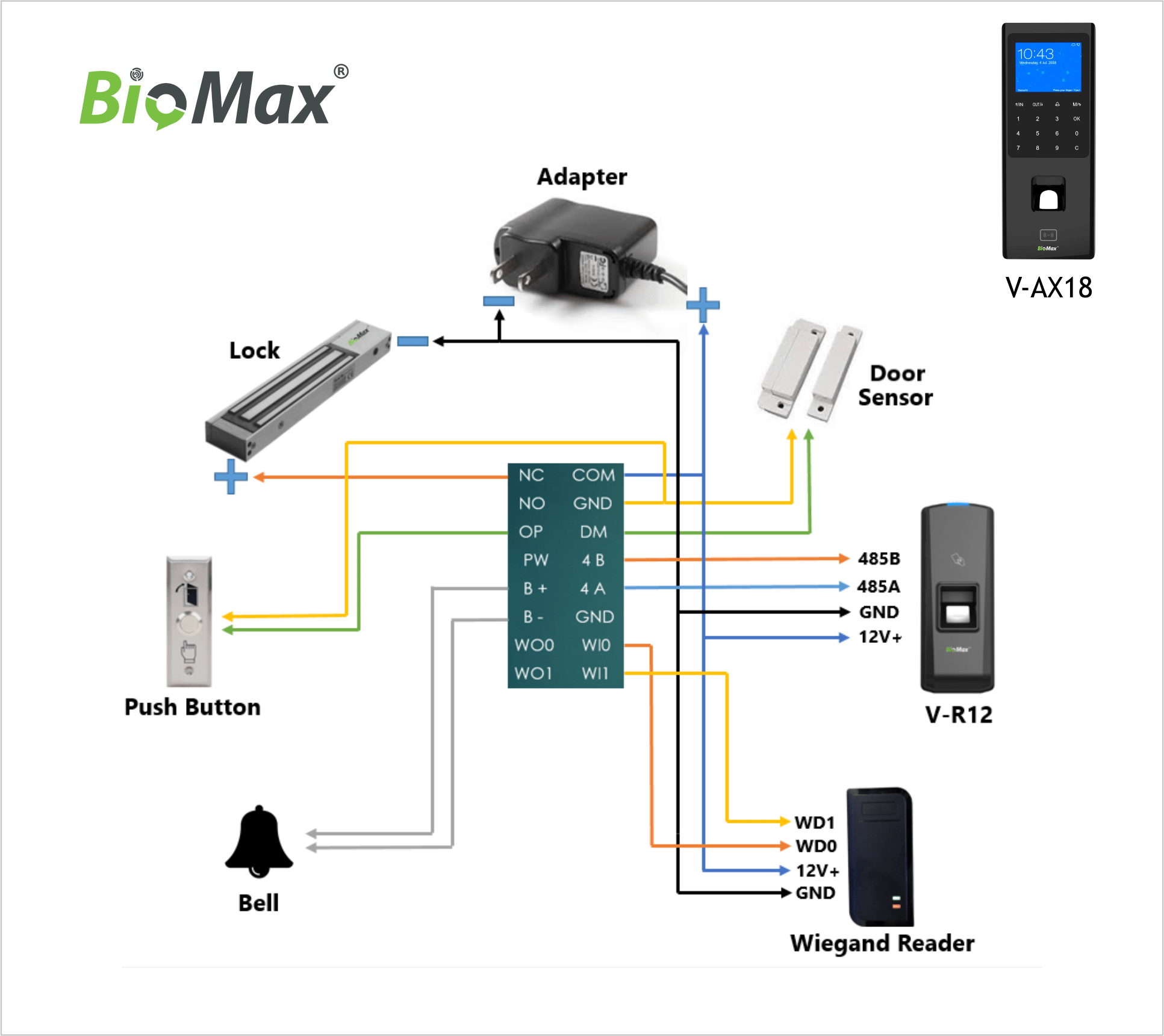

Access control

Wiegand input/output

Yes


Relay

1 Relay Output for Access control


Optional

Mifare Card, Battery


Self-defined Status

Yes

Door Sensor and Tamper Alarm

Yes

Exit Readers

Support exit readers

VR 12/Card Reader


Battery

Yes (Optional )

Software

Attendance Software

Desktop, Web, Cloud



V-AX18 V-AX18
