N-Z90W Pro


N - Z90W Pro the model for the companies with large number of Users.
All the features packed in this sleek & dynamic model.


N-Z90W Pro

N-Z90W Pro the model for the companies with large number of Users. All the features packed in this sleek & professional looking model. This includes FP, Face, RFID Card and Password and multiple verification mode with combination of FC/FP/P/C. There are large storage capacity of User Capacity consisting of 10000 Faces, 2000 Fingers, 10000 Card and ample of Logs Capacity 150000. An efficient CPU arrayed with Linux Base system for faster operations. The build quality of the device makes it sturdy whereas Feather Touch keyboard makes it pretty over the top model. There are different options available for connection LAN based, Wi-Fi for Wireless Connectivity and 4G Sim Card based, by these all option we getting a real time push data in software. Mobile Net is an advance option, just attach a SIM (4G) to device and get data from any location Also We can Download Data from Device by USB. Access data from Local office or Access with Multiple Different Location using PUSH Data technology.

We can use this device as canteen with printer (RS232) Long distance and angle face accepting also auto focus detection, for better and proper access we have to fix this at 51 Inch Height from bottom, there for we can easily enroll Faces and getting perfect feedback. Work Code- If we want to punch in different work code then we have available work code Option. Time zone- If We want to give particular timing to each employee for Entry and Exit then we have a time zone option. Also we set a user expiration rule for user. In this model we can lock our device with Admin, supervisor and operator role we can add number of FP for same User. Also we can give employee code as Alpha-Numeric. Online User Enrollment, Uploading user And Delete user from software This model has good battery backup We can also use as an Access control with Reader and EM Lock so we can easily getting security with access control Supported device – N FR12 , Wiegand Reader , Exit Switch , Wireless Remote , No Touch sensor.

Multi-Bio Time Attendance and Access Control System

  • Storage capacity
    Face Capacity : 2000 Finger Capacity : 10,000 Card Capacity: 10,000 Log Capacity : 1,50,000 Password Capacity : 10,000 Max. User : 10,000 Processor: 1GHz
    WiFi, TCP/IP, RS232/485, USB Push Data :Yes OS : Linux
    Access control
    Wiegand input/output : Yes Relay : Yes Support : Wiegand Reader, RS485 Reader, Push Button, Remote, No Touch
  • Biometric
    GPRS : Yes (Optional) Printer : Yes (Optional) FAR : 0.00001% FRR : 0.001% Sensor type : 500 DPI Identification Mode : Face, Fingerprint, Card, PIN
    LCD : 3" TFT Color Screen 480x272 pixel Voice instruction : 16-bit Hi-Fi voice & sound indication Language : English
    Power & environment

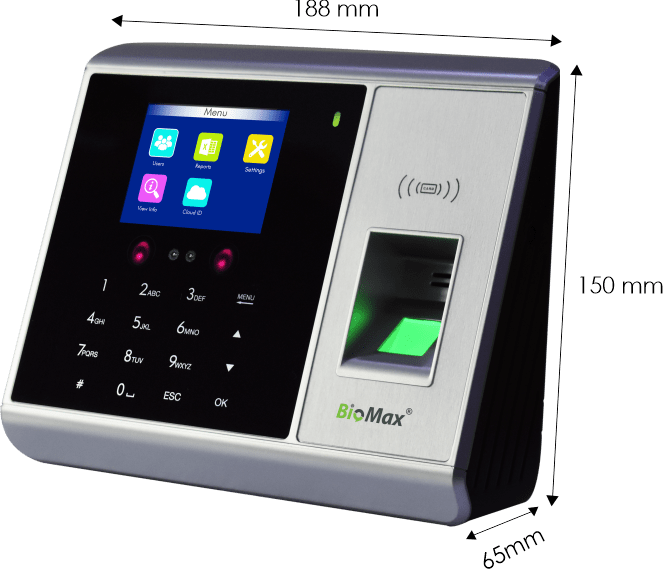

    Power : 12V DC / 2A Operating Temperature : 0°c ~ 50°c Battery : Optional Dimension : 188 x 65 x 150 mm
